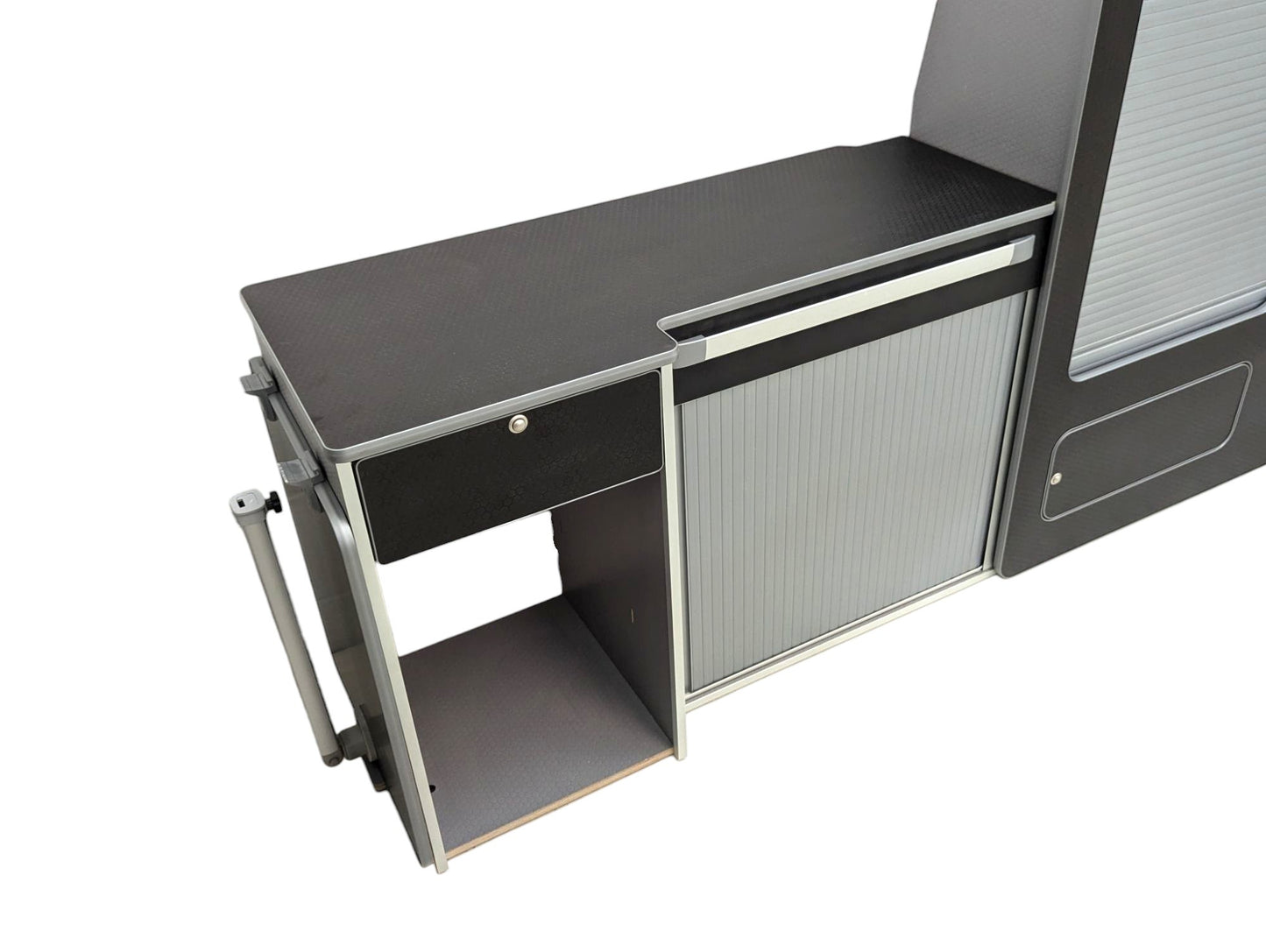

NEW Transporter-System Storage Version for Volkswagen Transporter SWB (NOT including fridge or Hob)

For SWB VW Transporter T5 T6 T6.1 - down the side of the van campervan furniture with space for a 50L fridge (NOT including fridge or hob)

Please note that this is the storage version so the hob unit is not included (fridge also not included)

• NEW innovative and practical design
• Fully assembled in two parts
• Fits onto the Transporter load lugs (front, middle and rear lugs)
• Delivered on a pallet in two parts, each part is fully assembled  and only needs bolting together and fixing to the Transporter load eyes (all 3)
• Lead time (we make to order) 2-3 weeks
• Colour Options: Black Hex or Grey and Driftwood
• Space for a CRX50 or CRE50 type fridge (Not included)
• Larger counter top
• New storage above the fridge space
• Better table position
• More storage inside the main unit with a new longer tambour door

Designed for the VW T5 T6 T6.1 panel van (SWB) and to work with a 3/4 rock & roll RIB 112 bed (1120mm). Team Vangear has designed this as a plug & play system!

• Fully assembled & ready to go
• Bolts supplied for Transporter load eyes
• Buy here online - Delivered to your home
• (NOT including fridge)
• Including VAT
• £55 Large UK pallet delivery (+£20 surcharge will apply for N. Ireland and the Highlands)

Dimensions:

Short Wheelbase Transporter (based on VW T5/T6/T6.1 SWB)

Height = 1300mm (kitchen pod height = 750mm)

Total Length = 2280mm

Depth =   The kitchen pod depth is 390mm

From rear door to fridge extension is 1910mm, the front kitchen is 1120mm and the rear part is 1160mm

• Anodised aluminium table rail front and a table is included
• Tambour door in front unit and rear pod
• Flat countertop - no hob or fridge included

• Floor mounted fixing slots for VW Transporter load eyes
• Fitment to sliding seat rail systems with our optional Vangear anchor cleat (ie VW Caravelle/California, Mercedes, Citroen)

Rear-Pod

It is designed for the VW T5 T6 T6.1 and this pod will work with a 3/4 rock & roll bed. options include mounting eyes for the loading lugs in the Transporter and an option for a larger rear water tank. It is also now available in Driftwood which compliments a front pod in either Black or Grey.

• Fully assembled and ready to fit
• Bolts to the front unit and then the whole system is bolted down
• Large tambour door with storage behind
• Fit with a 3/4 rock & roll bed i.e. the RIB 112  (1120mm wide)
• Mounting eyes to attach the unit to the loading lugs in the Transporter
• Rear coat hanging area/equipment area


Materials and weights

Kitchen pod

Black hex - phenolic birch plywood kg

Grey or Driftwood camper ply = kg

Rear Pod

Black hex - phenolic birch plywood (weight = 33kg)

Grey - lightweight campervan ply (weight = 29kg)

Driftwood -  lightweight campervan ply (weight = 29kg)

• Easy access
• Plenty of storage
• Available in Black, Grey or Driftwood
• This unit will need to be secured to the floor and side of the van


This unit will need to be secured to the floor and side of the van.

Concept and benefits of Vangear pods

Our units are intelligently designed to maximise space and provide a flexible, adaptable campervan system. We build our units with solid quality materials and they are fully assembled ready to be easily fitted into your campervan conversion.

• High-quality build and innovative features
• Stylish design and practical
• Fully assembled campervan unit, ready to go in a good value package

• Lightweight with integrated plumbing systems
• Reduced fitting times, simple to fit
• A kitchen unit that can form part of an innovative modular system
• Spares and technical backup

 Our Fitment Support Guarantee

In the event of problems fitting your pod we will:

• Help with technical advice
• Help you with any fitting adaptors/ extra mounting plates
• In the unlikely event that the unit does not fit - A 30 day return policy
• We also provide a 1 year warranty on parts

Delivery

• Designed and manufactured by Vangear in East Sussex, UK
• Our products are made to order
• Lead time = 2-3 weeks (unless on the in stock page)
• We are currently unable to ship pallets to Europe
• Units are made to order and can be delivered on a pallet to your home or collected from our workshop
• We offer a 30 day return policy (excluding postage)
• Watch our videos
• View our units at our Ditchling (East Sussex) workshop (appointment please)
• Call us for more information 01444 247129  07810592353
